The 800X differential pressure balancing valve is a valve used to balance the differential pressure between the supply/return water of an air conditioning system. The valve improves the utilization rate of the system, maintains an accurate constant value of the pressure difference, and minimizes the noise of the system and the damage caused by excessive pressure difference to the equipment. The 800X differential pressure balancing valve is superior to other balancing valves in that it has no actuator, and completely relies on the pressure difference of the medium itself to achieve the function of the balance system, saving energy and installation space. It is an intelligent valve.

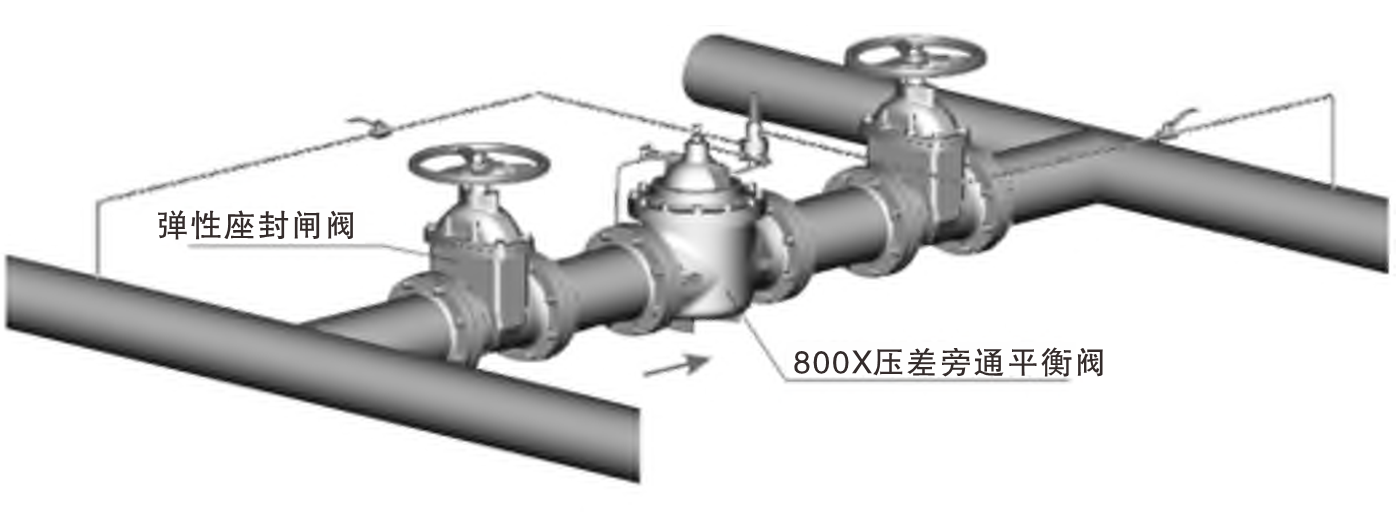

Typical installation diagram
